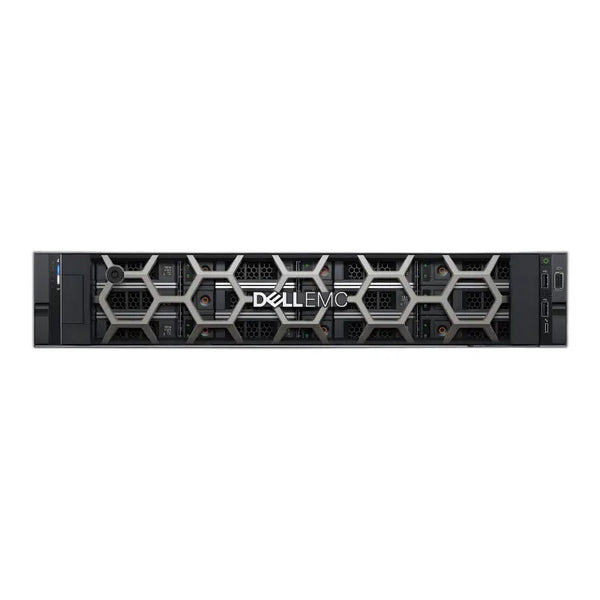

Dell PowerEdge R750 2U Rack Server
CPUs | 2 |
---|---|
CPU | Intel Xeon Silver 4309Y |
Clock Speed | 2.8 GHz |
Cores | 8 |
Threads | 16 |
Cache | 12.0 MB |
RAM | 128 GB |
BOSS | 2 × 240 GB M.2. SATA SSD |
RAID Controller | PERC H745 |
Storage | 12 × 12 TB SATA HDD |
NIC |
Broadcom 5720 Dual Port 1 GbE LOM Broadcom Dual Port 10 GB NIC |
PSUs | 2 |
Accessories |
Front Bezel Rackmount Kit |
Software | iDRAC Enterprise |
Warranty | 3 Years Next Business Day On-Site |
Manufacturer | Intel |
---|---|
Brand | Xeon |
Generation | 3 |
Chipset | C620 |
Socket | FCLGA4189 |
Sockets | 2 |
Max Speed | 3.6 GHz |
Max Cores | 40 |
Max TDP | 270 W |
Generation | DDR4 |
---|---|
Type | ECC RDIMM, LRDIMM, Optane |
Voltage | 1.2 V |
Slots | 32 |
Max Slots Optane | 16 |
Max Speed | 3200 MT/s |
Max Capacity RDIMM | 2 TB |
Max Capacity LRDIMM | 8 TB |
Max Capacity Optane | 12 TB |
Form Factors | 2.5, 3.5 | |||
---|---|---|---|---|
Interfaces | SATA, SAS, NVMe | |||
Front Bay Options | 2.5 × 8 | 2.5 × 16 | 2.5 × 24 | 3.5 × 12 |
Rear Bay Options | 2.5 × 2 | 2.5 × 4 | ||
Max Drives | 28 | |||
Max Capacity | 430.28 TB |
Boot • OS | BOSS-S1 | BOSS-S2 | ||||
---|---|---|---|---|---|---|
Internal | S150 | HBA 355i | H345 | H745 | H755 | H755N |
External | HBA 355e | H840 |
Generation | 4 | ||
---|---|---|---|
Slots | 8 | ||
Max Slots @ x16 | 6 | ||
GPU Options | 2 × 300 W | 3 × 150 W | 6 × 75 W |
Embedded Options | 2 × 1 GbE | |
---|---|---|
NIC Options | 1 × OCP 3.0 | PCIe x8 |
Internal | 1 × USB 3.0 | ||
---|---|---|---|
Front | 1 × micro-USB [iDRAC] | 1 × USB 2.0 | 1 × VGA |
Rear | 1 × USB 2.0 | 1 × USB 3.0 | 2 × RJ45 |
Rear optional | 1 × RS232 | 1 × VGA |
Redundancy | Yes | |||
---|---|---|---|---|
240 VAC W Platinum | 800 | 1400 | 2400 | |
240 VAC W Titanium | 700 | 1100 | 1800 | 2800 |
48/60 VDC W | 1100 |
Microsoft Windows Server | 2016 LTSC | 2019 LTSC | 2022 LTSC | ||
---|---|---|---|---|---|
VMware ESXi | 6.7 U3 | 7.0 U2 | 7.0 U3 | 8.0 | 8.0 U1 |
Red Hat Enterprise | 7.9 | 8.2 - 8.8 | 9.0 - 9.1 | ||
Ubuntu Server | 20.04 LTS | 22.04 LTS | |||
SuSE | ES 15 | ||||
Oracle | 8, 9 | ||||
Wind River | 21.12 | 22.12 |
Embedded iDRAC 9 | Direct | Service Module | Quick Sync 2 | ||
---|---|---|---|---|---|
Software OpenManage | Enterprise | Mobile | |||
Plugins | Power Manager | Update Manager | Support Assist | ||
Integrations | Microsoft System Center | VMware vCenter | VMware vRealize Operations Manager | Red Hat Ansible | BMC Truesight |
Connections | IBM Tivoli Netcool OMNIbus | IBM Tivoli Network Manager IP Edition | Nagios Core | Nagios XI |
Depth | 758.3 mm | 29.85 in |
---|---|---|
Depth with bezel | 772.14 mm | 30.39 in |
Width | 434 mm | 17.08 in |
Width ear to ear | 482 mm | 18.97 in |
Height | 86.8 mm | 3.41 in |
Height rack units | 2U |
No Backplane | 27.7 kg | 61.06 lb |
---|---|---|
2.5 × 8 | 29.6 kg | 65.25 lb |
2.5 × 16 | 32.6 kg | 71.87 lb |
2.5 × 24 | 35.2 kg | 77.60 lb |
3.5 × 12 | 35.3 kg | 77.82 lb |
