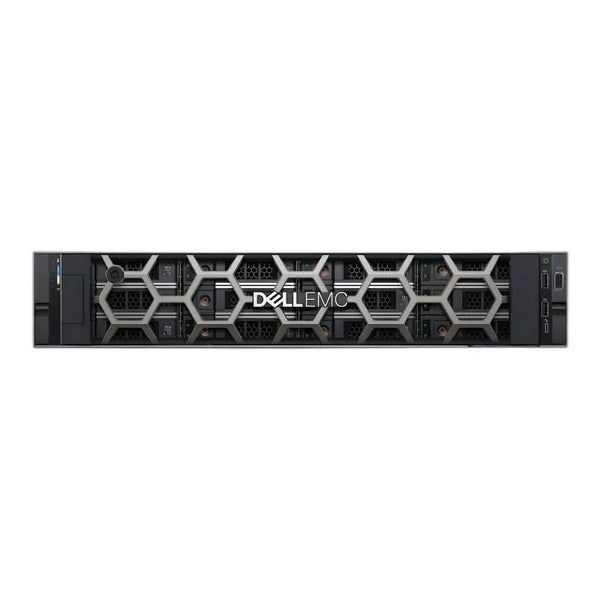

Dell PowerEdge R750xs 2U Rack Server
Dell PowerEdge R750xs 2U Rack Server
Key Features
  • 3 Years Onsite Warranty
  • 192 TB Storage
  • PERC H755 8GB RAID
    •
    Configuration close to what you're looking for?
    Let us know, as we build to your specification.
    £7,995.00
    Contact us today
    CPUs 2
    CPU Intel Xeon Silver 4309Y
    Clock Speed 2.8 GHz
    Cores 8
    Threads 16
    Cache 12.0 MB
    RAM 128 GB
    RAID Controller PERC H755
    Storage 2 × Dell 480 GB SSD
    12 × Dell 16 TB NL SAS 12G HDD
    NIC Broadcom 5720 Dual Port 1 GbE LOM
    PSUs 2
    Accessories Front Bezel
    Sliding Rackmount Kit
    Software iDRAC Enterprise
    Warranty 3 Years Next Business Day On-Site
    Copy Config
    CPU • Processor
    Manufacturer Intel
    Brand Xeon
    Generation 3
    Chipset C620
    Socket FCLGA4189
    Sockets 2
    Max Speed 4.0 GHz
    Max Cores 32
    Max TDP 205 W
    RAM • Memory
    Generation DDR4
    Type ECC RDIMM
    Voltage 1.2 V
    Slots 16
    Max Speed 3200 MT/s
    Max Capacity RDIMM 1 TB
    Drives • Storage
    Form Factors 2.5, 3.5
    Interfaces SATA, SAS, NVMe
    Front Bay Options 2.5 × 8 2.5 × 16 2.5 × 24 3.5 × 8 3.5 × 12 Diskless
    Rear Bay Options 2.5 × 2
    Max Drives 26
    Max Capacity 199.68 TB
    RAID • Storage Controllers
    Boot • OS BOSS-S1 BOSS-S2
    Internal S150 HBA 355i H345 H355 H745 H755 H755N
    External HBA 355e H840
    PCIe • Expansion Cards
    Generation 4, 3
    Slots 5, 1
    Max Slots @ x16 5
    GPU Options None
    Networking
    Embedded Options 2 × 1 GbE
    NIC Options 1 × OCP 3.0 PCIe x8
    I⁄O Ports
    Front 1 × micro-USB [iDRAC] 1 × USB 2.0 1 × VGA
    Rear 1 × USB 2.0 1 × USB 3.0 2 × RJ45 1 × VGA
    Rear optional 1 × RS232
    PSU • Power Supply
    Redundancy Yes
    240 VAC W Platinum 600 800 1400
    240 VAC W Titanium 1100
    240 VDC W Platinum 600 800 1400
    240 VDC W Titanium 1100
    48/60 VDC W 1100
    OS • Operating Systems
    Microsoft Windows Server 2016 LTSC 2019 LTSC 2022 LTSC
    VMware ESXi 6.7 U3 7.0 U2 7.0 U3 8.0 8.0 U1
    Red Hat Enterprise 7.9 8.3 - 8.8 9.0 - 9.1
    Ubuntu Server 20.04 LTS 22.04 LTS
    SuSE ES 15
    Oracle 7, 8
    Wind River TBC
    OoB • Management
    Embedded iDRAC 9 Direct Service Module Quick Sync 2
    Software OpenManage Enterprise Mobile
    Plugins Power Manager Update Manager Support Assist
    Integrations Microsoft System Center VMware vCenter VMware vRealize Operations Manager Red Hat Ansible BMC Truesight
    Connections IBM Tivoli Netcool OMNIbus IBM Tivoli Network Manager IP Edition Nagios Core Nagios XI
    Size
    Depth 707.78 mm 27.86 in
    Depth with bezel 721.62 mm 27.86 in
    Width 434 mm 17.08 in
    Width ear to ear 482 mm 18.97 in
    Height 86.8 mm 3.41 in
    Height rack units 2U
    Weight
    No Backplane 18.54 kg 40.87 lb
    2.5 × 8 20.44 kg 45.06 lb
    2.5 × 16 21.94 kg 48.36 lb
    2.5 × 24 23.84 kg 52.55 lb
    3.5 × 8 24.80 kg 54.67 lb
    3.5 × 12 28.76 kg 63.40 lb
