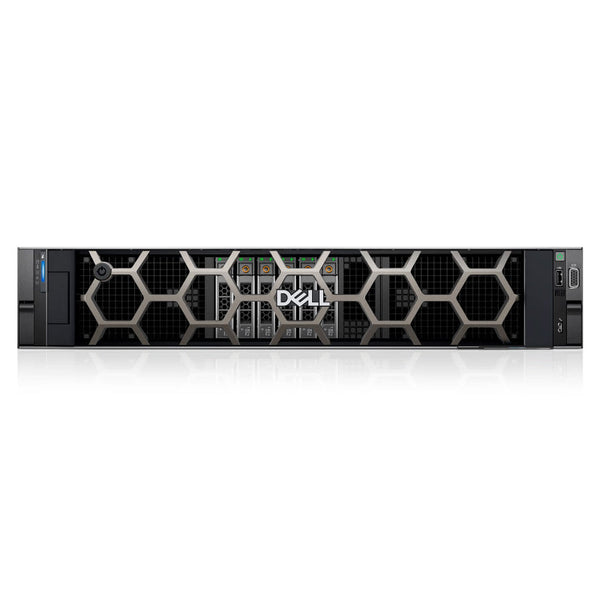

Dell PowerEdge R760XA 2U Deep Learning Server
Key Features
Nvidia H100 80Gb Deep Learning GPU
2TB DDR5 Ram
Dell 3.84TB 24Gbps SAS SSD
Configuration close to what you're looking for?
Let us know, as we build to your specification.
CPUs |
2
|
CPU |
Intel Xeon Gold 6438M
|
Clock Speed |
2.0 GHz
|
Cores |
32
|
Threads |
64
|
Cache |
60.0 MB
|
GPU |
Nvidia H100 80Gb Deep Learning GPU
|
Memory Size |
80 GB
|
RAM |
2.0 TB
|
Transfer Rate |
4800 MT/s
|
RAID Controller |
PERC H965i
|
Storage |
8 x Dell 3.84TB 24Gbps SAS SSD
|
NIC |
Broadcom 57414 Dual Port 25GB SFP28 NIC
|
PSUs |
2
|
PSU Power |
2400 W
|
Warranty |
3 Years Next Business Day On-Site
|
CPU • Processor
Manufacturer |
AMD |
Brand |
EPYC |
Generation |
3 |
Chipset |
Milan |
Socket |
SP3 |
Sockets |
2 |
Max Speed |
3.80 GHz |
Max Cores |
64 |
Max TDP |
280 W |
RAM • Memory
Generation |
DDR4 |
Type |
ECC RDIMM, LRDIMM |
Voltage |
1.2 V |
Slots |
32 |
Max Speed |
3200 MT/s |
Max Capacity RDIMM |
2 TB |
Max Capacity LRDIMM |
4 TB |
Drives • Storage
Form Factors |
2.5, 3.5 |
Interfaces |
SATA, SAS, NVMe |
Front Bay Options |
2.5 × 16 |
2.5 × 24 |
3.5 × 8 |
3.5 × 12 |
Rear Bay Options |
2.5 × 2 |
Max Drives |
26 |
RAID • Storage Controllers
Boot • OS |
BOSS-S1 |
BOSS-S2 |
Internal |
S150 |
HBA 355i |
H345 |
H355 |
H745 |
H755 |
H755N |
External |
HBA 355e |
H840 |
PCIe • Expansion Cards
Generation |
4 |
Slots |
8 |
GPU Options |
3 × 300 W |
6 × 75 W |
Networking
Embedded Options |
2 × 1 GbE |
NIC Options |
1 × OCP 3.0 |
PCIe x8 |
I⁄O Ports
Internal |
1 × USB 2.0 |
Front |
1 × micro-USB [iDRAC] |
1 × USB 2.0 |
1 × VGA |
Rear |
1 × USB 2.0 |
1 × USB 3.0 |
1 × RJ45 |
1 × VGA |
Rear optional |
1 × RS232 |
PSU • Power Supply
Redundancy |
Yes |
240 VAC W Platinum |
800 |
1400 |
2400 |
240 VAC W Titanium |
1100 |
240 VDC W Platinum |
800 |
1400 |
2400 |
240 VDC W Titanium |
1100 |
48/60 VDC W |
1100 |
OS • Operating Systems
Microsoft Windows Server |
2016 LTSC |
2019 LTSC |
2022 LTSC |
VMware ESXi |
6.5 U3 |
6.7 U3 |
7.0 |
7.0 U1 |
7.0 U2 |
7.0 U3 |
8.0 |
8.0 U1 |
Red Hat Enterprise |
7.7 - 7.9 |
8.3 - 8.8 |
9.0 - 9.1 |
Ubuntu Server |
18.04 LTS |
20.04 LTS |
22.04 LTS |
SuSE |
ES 15 |
Oracle |
7, 8 |
Wind River |
TBC |
OoB • Management
Embedded iDRAC 9 |
Direct |
RESTful API |
Quick Sync 2 |
Software OpenManage |
Enterprise |
Mobile |
Plugins |
Power Manager |
Update Manager |
Support Assist |
Integrations |
Microsoft System Center |
VMware vCenter |
Red Hat Ansible |
BMC Truesight |
Connections |
IBM Tivoli Netcool OMNIbus |
IBM Tivoli Network Manager IP Edition |
Nagios Core |
Nagios XI |
Micro Focus Operations Manager |
Size
Depth |
758.29 mm |
29.85 in |
Depth with bezel |
772.13 mm |
30.39 in |
Width |
434 mm |
17.08 in |
Width ear to ear |
482 mm |
18.97 in |
Height |
86.8 mm |
3.41 in |
Height rack units |
2U |
Weight
2.5 × 8 |
24.6 kg |
54.23 lb |
2.5 × 16 |
26.6 kg |
58.64 lb |
2.5 × 24 |
28.6 kg |
63.05 lb |
3.5 × 8 |
33.2 kg |
73.19 lb |
3.5 × 12 |
36.3 kg |
80.02 lb |
