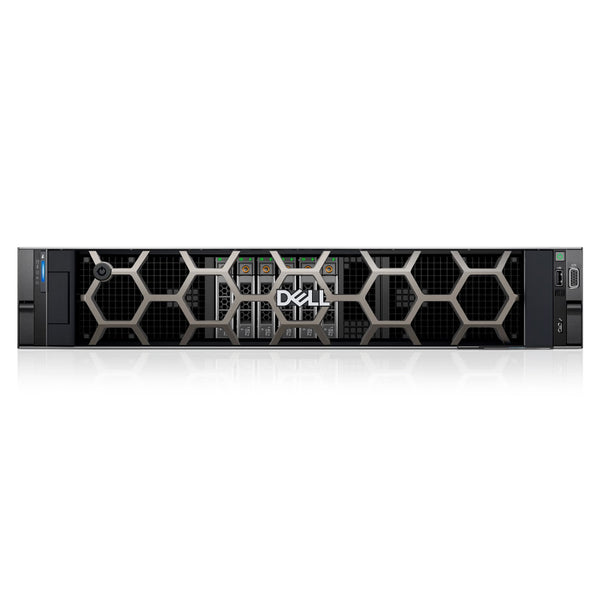

Dell PowerEdge R760XA 2U Rack Server
Dell PowerEdge R760XA 2U Rack Server
Key Features
  • 512 GB DDR5 RAM
  • 30TB SAS SSD
  • 2 x 16GB GDDR6 Passive GPU
    •
    Configuration close to what you're looking for?
    Let us know, as we build to your specification.
    £14,090.00
    Contact us today
    CPUs 2
    CPU Intel Xeon Silver 4410Y
    Clock Speed 2.0 GHz
    Cores 12
    Threads 24
    Cache 30.0 MB
    GPU 2x Nvidia Ampere A2 Passive GDDR6
    Memory Size 16 GB
    RAM 512 GB
    Transfer Rate 4800 MT/s
    RAID Controller PERC H965i
    Storage 4 x Dell 7.68TB SAS SSD
    NIC Broadcom 5720 Quad Port 1GB NIC
    Broadcom 57416 Dual Port 10GB BASE-T NIC
    PSUs 2
    Warranty 3 Years Next Business Day On-Site
    Copy Config
    CPU • Processor
    Manufacturer AMD
    Brand EPYC
    Generation 3
    Chipset Milan
    Socket SP3
    Sockets 2
    Max Speed 3.80 GHz
    Max Cores 64
    Max TDP 280 W
    RAM • Memory
    Generation DDR4
    Type ECC RDIMM, LRDIMM
    Voltage 1.2 V
    Slots 32
    Max Speed 3200 MT/s
    Max Capacity RDIMM 2 TB
    Max Capacity LRDIMM 4 TB
    Drives • Storage
    Form Factors 2.5, 3.5
    Interfaces SATA, SAS, NVMe
    Front Bay Options 2.5 × 16 2.5 × 24 3.5 × 8 3.5 × 12
    Rear Bay Options 2.5 × 2
    Max Drives 26
    RAID • Storage Controllers
    Boot • OS BOSS-S1 BOSS-S2
    Internal S150 HBA 355i H345 H355 H745 H755 H755N
    External HBA 355e H840
    PCIe • Expansion Cards
    Generation 4
    Slots 8
    GPU Options 3 × 300 W 6 × 75 W
    Networking
    Embedded Options 2 × 1 GbE
    NIC Options 1 × OCP 3.0 PCIe x8
    I⁄O Ports
    Internal 1 × USB 2.0
    Front 1 × micro-USB [iDRAC] 1 × USB 2.0 1 × VGA
    Rear 1 × USB 2.0 1 × USB 3.0 1 × RJ45 1 × VGA
    Rear optional 1 × RS232
    PSU • Power Supply
    Redundancy Yes
    240 VAC W Platinum 800 1400 2400
    240 VAC W Titanium 1100
    240 VDC W Platinum 800 1400 2400
    240 VDC W Titanium 1100
    48/60 VDC W 1100
    OS • Operating Systems
    Microsoft Windows Server 2016 LTSC 2019 LTSC 2022 LTSC
    VMware ESXi 6.5 U3 6.7 U3 7.0 7.0 U1 7.0 U2 7.0 U3 8.0 8.0 U1
    Red Hat Enterprise 7.7 - 7.9 8.3 - 8.8 9.0 - 9.1
    Ubuntu Server 18.04 LTS 20.04 LTS 22.04 LTS
    SuSE ES 15
    Oracle 7, 8
    Wind River TBC
    OoB • Management
    Embedded iDRAC 9 Direct RESTful API Quick Sync 2
    Software OpenManage Enterprise Mobile
    Plugins Power Manager Update Manager Support Assist
    Integrations Microsoft System Center VMware vCenter Red Hat Ansible BMC Truesight
    Connections IBM Tivoli Netcool OMNIbus IBM Tivoli Network Manager IP Edition Nagios Core Nagios XI Micro Focus Operations Manager
    Size
    Depth 758.29 mm 29.85 in
    Depth with bezel 772.13 mm 30.39 in
    Width 434 mm 17.08 in
    Width ear to ear 482 mm 18.97 in
    Height 86.8 mm 3.41 in
    Height rack units 2U
    Weight
    2.5 × 8 24.6 kg 54.23 lb
    2.5 × 16 26.6 kg 58.64 lb
    2.5 × 24 28.6 kg 63.05 lb
    3.5 × 8 33.2 kg 73.19 lb
    3.5 × 12 36.3 kg 80.02 lb
